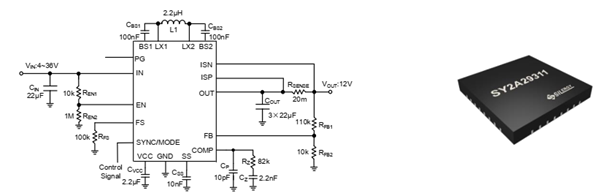

SY2A29311

High Efficiency, 4V-36V Input Single Inductor Synchronous Step Up/Down Regulator

Features

• 4V to 36V Input Voltage Range
• 3V to 20V Output Voltage Range
• Low R DS(ON) for Internal Switches: 35mΩ
• External Soft-start Limits the Inrush Current
• 1μA shutdown current
• 7A Internal Switch Peak Current Capability
• Programmable Frequency 200kHz~600kHz
• 1.0V±2% Reference over -40°C to 125°C
• Light Load Operating Mode Selection: PSM or FCCM
• Power Good Indicator • Hic-cup Mode for Output Short-circuit Protection
• Output Over Current Protection
• Thermal Shutdown with Auto Recovery
• Compact Package: QFN5×5-30
• Automotive AEC- Q100 Grade 1 Qualified



Applications

• Info, T-Box, Gateway
• ADAS
• Smart Cockpit
