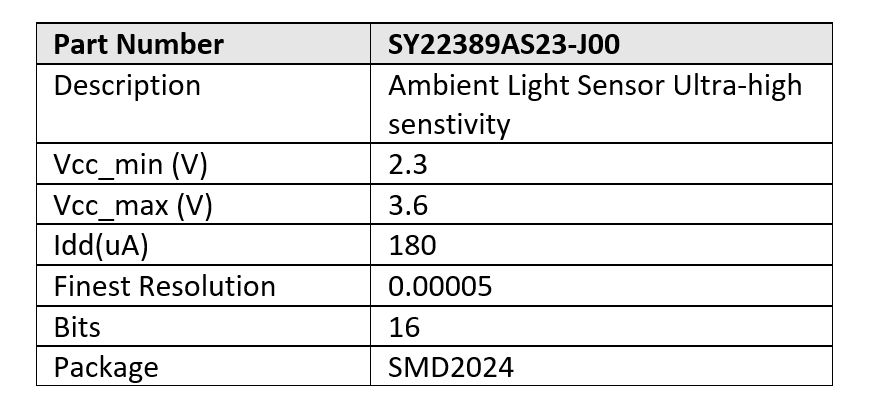

SY22389AS23-J00

16-bit Ambient Light Sensor with Ultra-high Sensitivity and High IR Rejection

FEATURES

• ALS
• Output Count Proportional to Environmental Lux
• Ultra-high Sensitivity, Suitable for Applications with Low Transmission
• Ultra-high IR Rejection Which Makes Light Ratio Close to 1.0 Under Various Light Source
• Indoor Light Source Flicker Noise Rejection
• Match Human Eye’s Response  (Photopic Vision Curve)
• Green Power
• Less Than 1uA Current Consumption When Shut Down
• 180uA DC Supply Current When Two Channels Activated
• Wide Operation Range
• 2.3V to 3.6V Power Supply
• 1.7V to 3.6V Supply for I2C Interface
• Wide Operation Temperature Range
• -30°C to +85°C Ambient Temperature
• Package Information
• Size: 2.0mm×2.4mm×0.6mm
• Type: SMD BT with Transparent Molding Compound
